LS175 45/0 Colorimeter with 20mm Aperture, Portable Color Analyzer, Color Difference Meter Tester, 3.5-inch Touch Screen

LS175 is a handheld 45/0 illumination geometry colorimeter with a large 20mm measuring aperture, a 3.5-inch IPS color capacity touch screen, and can connect with mobile phone or PC. This device can work independently without connecting APP on mobile phone or PC software. Several color charts helps matching the closest color number of scanned color in short time. The device also has color comparison function, supporting multiple methods of adding standard. Availability of setting threshold of color difference ensures QC quick inspcetion. The device can connect APP and PC software, expanding its functions such as color sharing and printing report. Specifications: Illumination geometry: 45/0 (45° annular illumination, 0° viewing angle) Illumination light source: Full spectrum LED light source Measuring aperture: 20mm Measurement conditions: Light source D65, field of view 10° Measuring time:1s Color space: CIE Lab、Luv、LCh、Yxy、CMYK、RGB、Hex Color difference formula: ΔE*ab、ΔE*uv、ΔE*94、ΔE*cmc(2:1)、ΔE*cmc(1:1)、ΔE*00 Repeatability: Standard deviation ΔE*ab ≤ 0.03 (Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration) Dimension: 86mm X 62.5mm X 158mm Weight: 225g Power supply: Rechargeable lithium battery 3.7V@4000mAh, can measure 10,000 times continuously under full charge Display: 480×320 dot matrix IPS color screen Language: Simplified Chinese, English Charging port: USB(Type-C) Data transmission: USB Operating temperature range: 0~45℃，0~85%RH（no condensation） Storage temperature range: -25~55℃，0~85%RH（no condensation） Packing List 1 x Colorimeter 1 x USB cable 1 x Cleaning cloth 1 x Locating plate 1 x User manual 1 x Certificate / Warranty card 1 x Calibration Report

• Large measuring aperture up to 20mm, suitable for color measurement on textured or rough surface materials;
• 3.5-inch IPS color display and capacity touch panel offer simple operation;

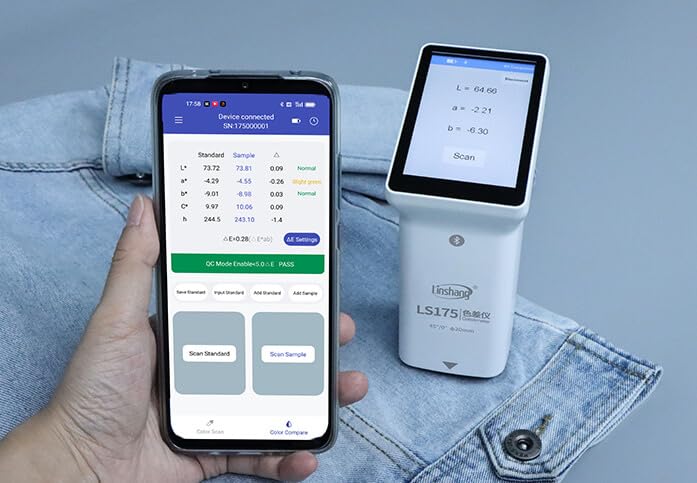

• Color comparison and color scan functions

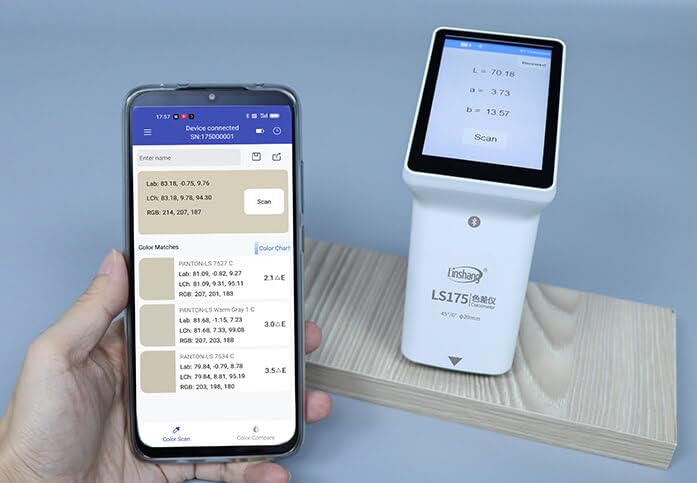

• The device can connect APP on mobile phone or connect PC software via USB cable.
• LS175 has wide application in color measurement and widely used in industries of textiles, leather，fabrics and wood furniture.
